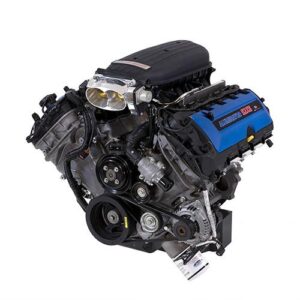

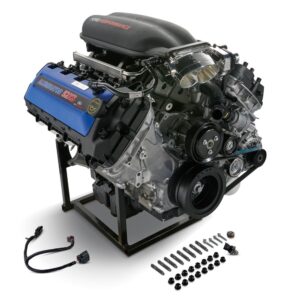

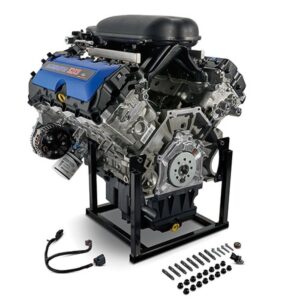

FORD PERFORMANCE 5.2 ALUMINATOR XS CRATE ENGINE

Ford Performance 5.2L Aluminator XS Crate Engine — 580HP | 445 lb-ft | Hand-Assembled | 2-Year Warranty

Meet the pinnacle of Ford Performance crate engine engineering — the 5.2L Aluminator XS, the most powerful naturally aspirated crate engine Ford Performance has ever built. Producing a staggering 580 horsepower and 445 lb-ft of torquefrom a 12:1 compression ratio, this is the engine for builders who refuse to compromise. Whether you’re building the ultimate Mustang, a purpose-built hot rod, or a dedicated track weapon, the Aluminator XS delivers factory-backed, hand-assembled performance that no off-the-shelf crate engine can match.

Every Aluminator XS is hand-assembled by the same Ford Performance technicians who build the Mustang Cobra Jet drag racing engines — the same craftsmen, the same standards, the same attention to detail that goes into Ford’s most serious competition machinery. This is not a mass-produced engine. It is a precision-built performance powerplant backed by a 2-Year / 24,000-mile warranty straight from Ford Performance.

Engine Specifications:

• Displacement: 5.2L / 317 Cubic Inches
• Horsepower: 580 HP
• Torque: 445 lb-ft
• Compression Ratio: 12:1
• Crankshaft: Forged Steel Cross-Plane
• Block: Ford Performance M-6010-M52B Shelby GT500 Cylinder Block

Premium Internal Components:

• Pistons: Mahle hard anodized forged pistons with Graphal low-friction coating
• Connecting Rods: Manley H-beam with ARP2000 bolts
• Cylinder Heads: CNC-ported GT350 aluminum heads with roller-finger camshaft followers
• Camshafts: Unique Ford Performance camshafts — Intake: 14mm lift / 270° duration | Exhaust: 14mm lift / 270° duration
• Timing: Low-leak rate Variable Cam Timing (VCT) phasers with robust primary timing chains as used on the Shelby GT350R

Performance & Induction:

• Intake: Ford Performance Cobra Jet Intake M-9424-M50CJB (Note: Will not clear stock 2015–2017 hood)
• Throttle Body: Ford Performance M-9926-CJ65 Dual 65mm Bore
• Fuel Injectors: 47 lb. high-flow injectors
• Spark Plugs: Zero heat range Ford Performance plugs
• Coil Covers: Exclusive Ford Performance blue with unique Aluminator 5.2 badging

Supporting Hardware:

• Oil Pan: Shelby GT350 pan with integrated windage and slosh baffles and integrated oil pickup
• Alternator: 200-amp unit with front engine accessory drive as used on the Cobra Jet race car
• Ignition: High RPM pulse ring
• Oil Filter: Ford Performance M-6731-FL820 (1 included)
• Engine Mount Pattern: Common to 4.6L modular engines for broad compatibility

What’s in the Box:

• 1 × Aluminator 5.2L XS Crate Engine — fully assembled and ready to install

Additional Parts Required for Installation:

• Vehicle harness and PCM (M6017504V for manual / M6017M50A for automatic)
• Engine harness or flywheel / flexplate
• Headers
• Assembly plant lift brackets
